ARUBA APIN0315 GIGABIT WIRELESS ACCESS POINT( REF: 210119016 )

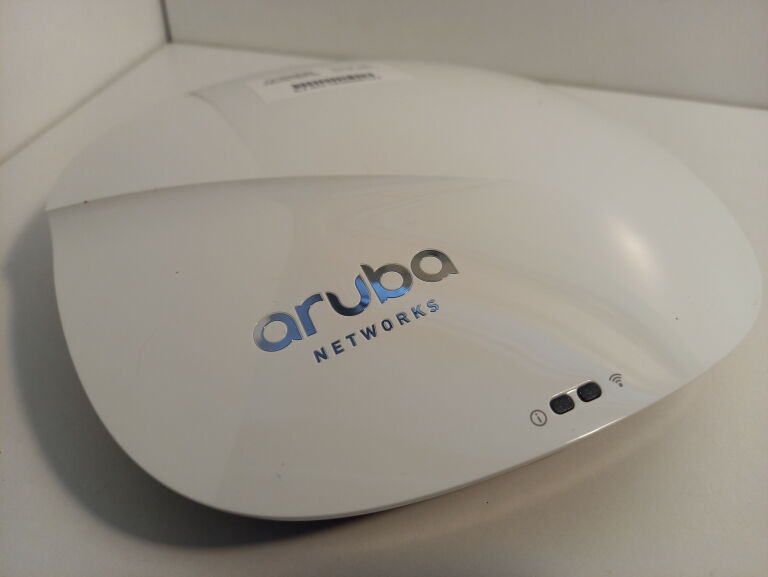

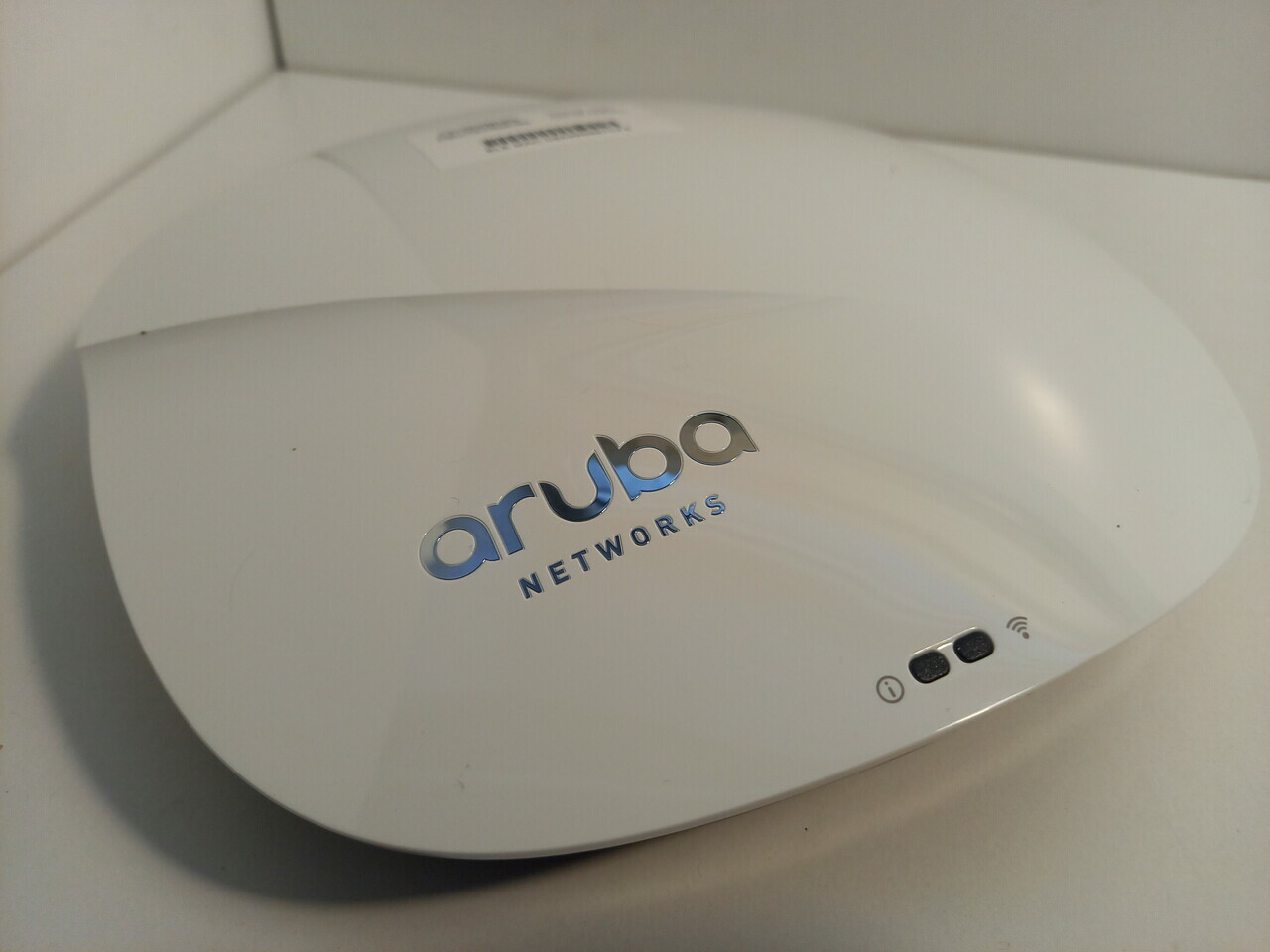

Aruba APIN0315 Gigabit Wireless Access Point

SPECYFIKACJA:

AP-315 (controller-managed) and IAP-315 (Instant):

802.11ac - 5GHz 4x4 MIMO (1,733Mbps max rate) and 2.4GHz 2x2 MIMO (400Mbps max rate) radios, with a total of four integrated omni-directional downtilt dual-band antennasWireless Radio Specifications

AP type: Indoor, dual radio, 5GHz 802.11ac 4x4 MIMO and 2.4GHz 802.11n 2x2 MIMOSoftware-configurable dual radio supports 5GHz (Radio 0) and 2.4GHz (Radio 1)5GHz: Four spatial stream Single User (SU) MIMO for up to 1,733Mbps wireless data rate to individual 4x4 VHT80 or 2x2 VHT160 client devices2.4GHz: Two spatial stream Single User (SU) MIMO for up to 400 Mbps wireless data rate to individual 2x2 VHT40 client devices (300Mbps for HT40 802.11n client devices)5GHz: Four spatial stream Multi User (MU) MIMO for up to 1,733 Mbps wireless data rate to up to three MU-MIMO capable client devices simultaneouslySupport for up to 255 associated client devices per radio, and up to 16 BSSIDs per radioSupported frequency bands (country-specific restrictions apply):2.400 to 2.4835GHz

5.150 to 5.250GHz

5.250 to 5.350GHz

5.470 to 5.725GHz

5.725 to 5.850GHzAvailable channels: Dependent on configured regulatory domainDynamic frequency selection (DFS) optimizes the use of available RF spectrumSupported radio technologies:802.11b: Direct-sequence spread-spectrum (DSSS)

802.11a/g/n/ac: Orthogonal frequency-division multiplexing (OFDM)Supported modulation types:802.11b: BPSK, QPSK, CCK

802.11a/g/n/ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAMTransmit power: Configurable in increments of 0.5 dBmMaximum (conducted) transmit power (limited by local regulatory requirements):2.4GHz band: +18 dBm per chain, +21dBm aggregate (2x2)

5GHz band: +18 dBm per chain, +24dBm aggregate (4x4)

Note: conducted transmit power levels exclude antenna gain. For total (EIRP) transmit power, add antenna gainAdvanced Cellular Coexistence (ACC) minimizes interference from cellular networksMaximum ratio combining (MRC) for improved receiver performanceCyclic delay/shift diversity (CDD/CSD) for improved downlink RF performanceShort guard interval for 20MHz, 40MHz, 80MHz and 160MHz channelsSpace-time block coding (STBC) for increased range and improved receptionLow-density parity check (LDPC) for high-efficiency error correction and increased throughputTransmit beam-forming (TxBF) for increased signal reliability and rangeSupported data rates (Mbps):802.11b: 1, 2, 5.5, 11

802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54

802.11n (2.4GHz): 6.5 to 300 (MCS0 to MCS15)

802.11n (5GHz): 6.5 to 600 (MCS0 to MCS31)

802.11ac: 6.5 to 1,733 (MCS0 to MCS9, NSS = 1 to 4 for VHT20/40/80, NSS = 1 to 2 for VHT160)802.11n high-throughput (HT) support: HT 20/40802.11ac very high throughput (VHT) support: VHT 20/40/80/160802.11n/ac packet aggregation: A-MPDU, A-MSDUWiFi Antennas

AP-315/IAP-315: Four integrated dual-band downtilt omni-directional antennas for 4x4 MIMO with maximum antenna gain of 3.1dBi in 2.4GHz and 5.0dBi in 5GHz. Built-in antennas are optimized for horizontal ceiling mounted orientation of the AP. The downtilt angle for maximum gain is roughly 30 degrees.The maximum gain of the combined (summed) antenna patterns for all elements operating in the same band is 3.9dBi in 2.4GHz and 5.7dBi in 5GHz.Other Interfaces

One 10/100/1000BASE-T Ethernet network interface (RJ-45)Auto-sensing link speed and MDI/MDX802.3az Energy Efficient Ethernet (EEE)USB 2.0 host interface (Type A connector)Bluetooth Low Energy (BLE) radioUp to 4dBm transmit power (class 2) and -91dBm receive sensitivityIntegrated antenna with roughly 30 degrees downtilt and peak gain of 3.4dBi (AP-314/IAP-314) or 1.5dBi (AP-315/IAP-315)Visual indicators (multi-color LEDs): for System and Radio statusReset button: factory reset (during device power up)Serial console interface (proprietary; optional adapter cable available)Kensington security slotPower Sources and Consumption

The AP supports direct DC power and Power over Ethernet (POE)When both power sources are available, DC power takes priority over POEPower sources are sold separatelyDirect DC source: 12Vdc nominal, +/- 5%Interface accepts 2.1/5.5-mm center-positive circular plug with 9.5-mm lengthPower over Ethernet (POE): 48 Vdc (nominal) 802.3af/802.3at compliant sourceUnrestricted functionality with 802.3at POE

When using IPM, the AP may enter power-save mode with reduced functionality when powered by an 802.3af POE source (see details on Intelligent Power Monitoring elsewhere in this datasheet)

Without IPM, the USB port is disabled and transmit power of the 2.4GHz radio chains is reduced by 3dB to 15dBm max when the AP is powered by and 802.3af POE sourceMaximum (worst-case) power consumption: 14.4W (802.3at POE), 13.6W (802.3af POE) or 12.7W (DC)Excludes power consumed by external USB device (and internal overhead); this could add up to 6.3W (POE) or 5.9W (DC) for a 5W/1A USB deviceMaximum (worst-case) power consumption in idle mode: 6.4W (POE) or 5.9W (DC)Mounting

The AP ships with two (white) mounting clips to attach to a 9/16-inch or 15/16-inch flat T-bar drop-tile ceiling.Several optional mount kits are available to attach the AP to a variety of surfaces; see the Ordering Information section below for detailsMechanical

Dimensions/weight (unit, excluding mount accessories): 182mm(W) x 180mm(D) x 48mm (H), 650g/23ozDimensions/weight (shipping): 223mm(W) x 218mm(D) x 55mm(H) (W x D x H), 850g/30ozEnvironmental

Operating: Temperature: 0 C to +50 C (+32 F to +122 F)Humidity: 5% to 95% non-condensingStorage and transportation: Temperature: -40 C to +70 C (-40 F to +158 F)Regulatory

FCC/Industry of CanadaCE MarkedR&TTE Directive 1995/5/ECLow Voltage Directive 72/23/EECEN 300 328EN 301 489EN 301 893UL/IEC/EN 60950EN 60601-1-1 and EN 60601-1-2For more country-specific regulatory information and approvals, please see your Aruba representative.

Reliability

MTBF: 916,373hrs (105yrs) at +25C operating temperatureRegulatory Model Number

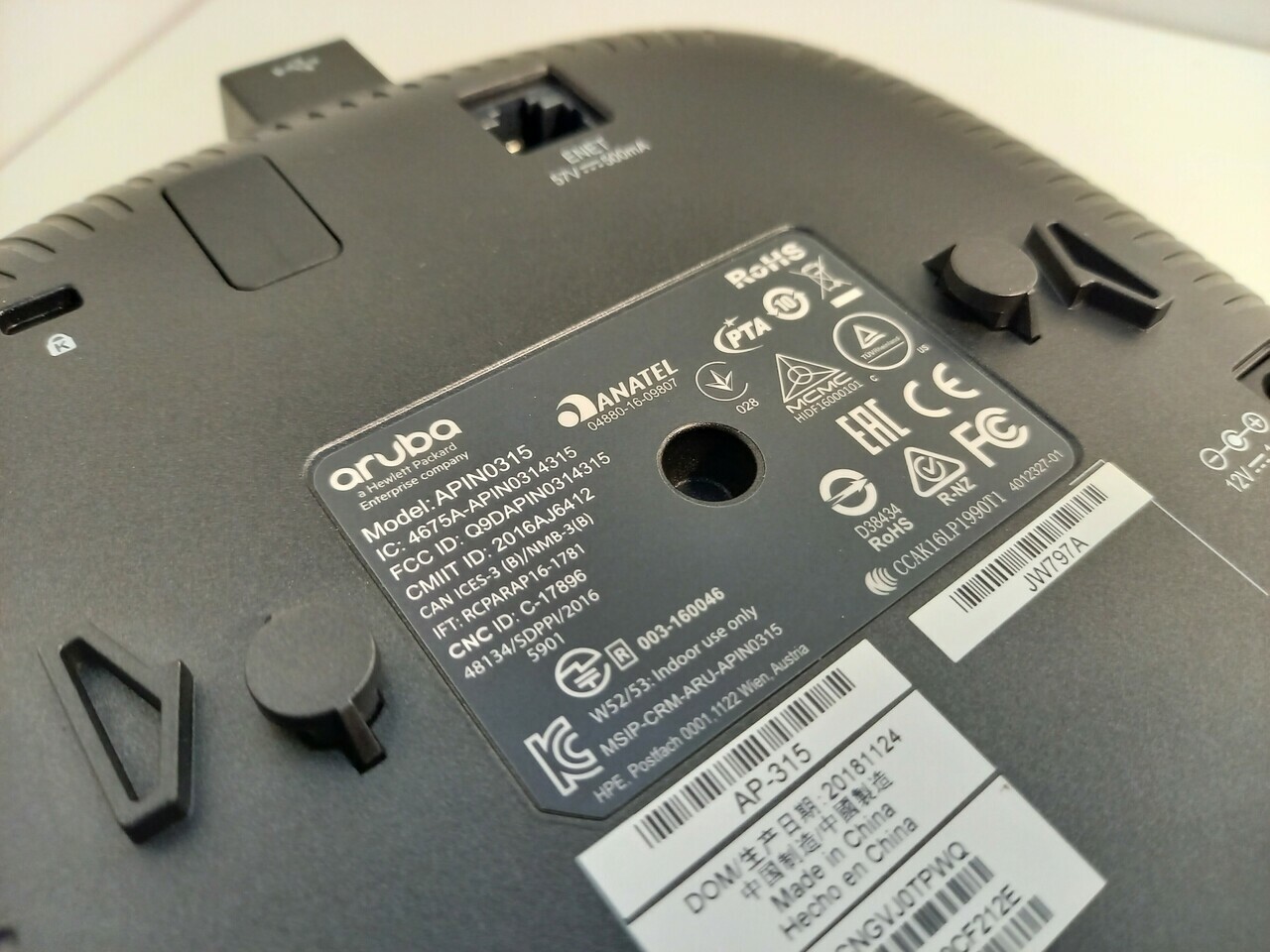

AP-314 and IAP-314: APIN0314AP-315 and IAP-315: APIN0315Certifications

CB Scheme Safety, cTUVusUL2043 plenum ratingWi-Fi Alliance (WFA) certified 802.11a/b/g/n/ac

Sprzęt używany, w 100% sprawny technicznie, bardzo dobry stan wizualny.

W zestawie także:

- pudełko

- uchwyt

- zasilacz
